Product Description
Conductor ::Particularly high-flex design made of free-Oxygen copper wires according to VDE0295 CLASS 6
Conductor insulation: High quality imported PVC
Color: Option
Core wire structure:anti twist layered, or grouping with divided gap filling by high strength core
Inner Sheath: Polyested tape or non woven fabric fabric
Shield: Braid made of tinned copper ,cover above 70%
Outer Jacket: high-quality import PUR/TPU/PU or Special PVC
Jacket color:Black/Grey/Orange
![Shielded Drag Chain Cable Trvvp7 * 0.5 with Shielded Flexible Drag Chain Cable Flexible CNC Drag Chain Cable](https://img3.grofrom.com/jonao/e9890e9b8db6a669c7b4100a29321e16.webp)
Technical parameter
rated voltage:<0.5mm2:300/300V ≥0.5mm2:300/500V
test voltage: 2000V
minimum bending radius: Fixed installation:6×D
Movable installation:distance of travel <10m,minimum bending radius 8×D
distance of travel ≥10m,minimum bending radius 10×D
Application temperature:Fixed installation:-30ºC-+70ºC movable installation;-20ºC- +70ºC
Flame resistance:following IEC60332-1-2+EN60332-1-2
![Shielded Drag Chain Cable Trvvp7 * 0.5 with Shielded Flexible Drag Chain Cable Flexible CNC Drag Chain Cable](https://img3.grofrom.com/jonao/fd534092d1f8dc39c33d6e13e1422283.webp)
characteristic
1.Laying stroke:50m, accelerated speed:20m/s2,travelling speed:5m/s
2.Life of bending>300 0000 times
3.water resistance,oil resistance,UV resistant,abrasion resistance,cold resistance,weatherability.electromagnetic immunity.
With higher acceleration and stronger torsion than standard flexible cable
![Shielded Drag Chain Cable Trvvp7 * 0.5 with Shielded Flexible Drag Chain Cable Flexible CNC Drag Chain Cable](https://img3.grofrom.com/jonao/c4b950a73698407add51dddd1d3a06db.webp)
![Shielded Drag Chain Cable Trvvp7 * 0.5 with Shielded Flexible Drag Chain Cable Flexible CNC Drag Chain Cable](https://img3.grofrom.com/jonao/68bc227baebf394e782aad8e3e82c5b1.webp)
![Shielded Drag Chain Cable Trvvp7 * 0.5 with Shielded Flexible Drag Chain Cable Flexible CNC Drag Chain Cable](https://img3.grofrom.com/jonao/fb4c5c1dec6339f3de57a082bba494ae.webp)

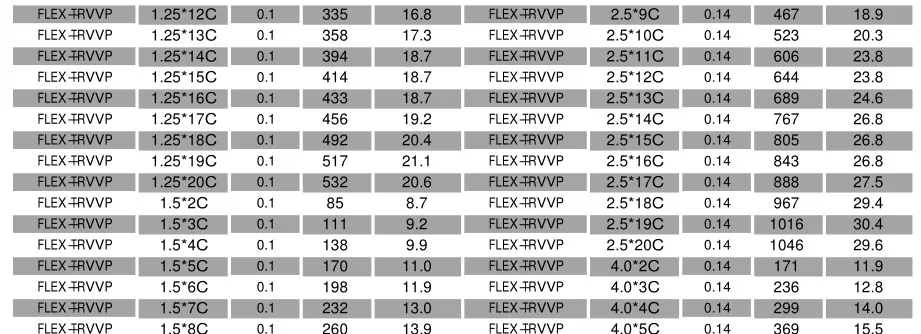

Specification(We also accept customized cable)
![Shielded Drag Chain Cable Trvvp7 * 0.5 with Shielded Flexible Drag Chain Cable Flexible CNC Drag Chain Cable](https://img3.grofrom.com/jonao/ec4ba7ffcae06ef1d0dd0dede936b2c8.webp)
![Shielded Drag Chain Cable Trvvp7 * 0.5 with Shielded Flexible Drag Chain Cable Flexible CNC Drag Chain Cable](https://img3.grofrom.com/jonao/c6a411d14961aab64a7c31497d0cf98e.webp)
![Shielded Drag Chain Cable Trvvp7 * 0.5 with Shielded Flexible Drag Chain Cable Flexible CNC Drag Chain Cable](https://img3.grofrom.com/jonao/e8837db16eb721dac49932f471f5a56b.webp)
![Shielded Drag Chain Cable Trvvp7 * 0.5 with Shielded Flexible Drag Chain Cable Flexible CNC Drag Chain Cable](https://img3.grofrom.com/jonao/95df9c9d8f2b541eb02965d29840d2a5.webp)
![Shielded Drag Chain Cable Trvvp7 * 0.5 with Shielded Flexible Drag Chain Cable Flexible CNC Drag Chain Cable](https://img3.grofrom.com/jonao/7dadd458b6dadcab937b2b76934aaabf.webp)
![Shielded Drag Chain Cable Trvvp7 * 0.5 with Shielded Flexible Drag Chain Cable Flexible CNC Drag Chain Cable](https://img3.grofrom.com/jonao/81aded49637c72a44bff12589ba956ab.webp)
